Winching Equipment

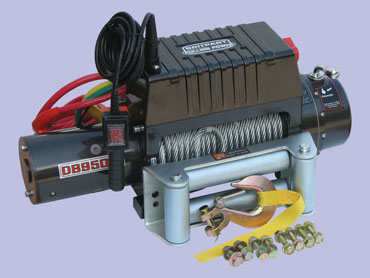

Britpart Pulling Power Winch - 12,000lbs
Steel cable
12 volt
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable with minimum break force of 14,400lbs.
A full range of winching equipment is also available from Britpart - including; bumpers, chocks, hooks, shackles & ropes. Together with the winches you’ll be able to ‘Get to where you want to go!’
Features
> 3.6Kw (4.8Hp) heavy-duty series wound DC motor
> Weather and dustproof contactor controls for longer life and improved amperage draw
> Planetary gear system for fast line speed
> Automatic load-holding brake
> Free spooling
> Power in and power out
> Low electric current
> Hardened drum
> Thermal overload protection
Specification
> Rated line pull - single line - 12,000lbs
> Gear reduction ratio - 294:1
> Motor (series wound) - 4.8Hp
> Drum size (D x L) - 2.5 x 9"
> Cable supplied - 3/8" x 100' - Galvanised aircraft cable with minimum break force 14,400lbs
> Overall dimension (L x W x H) - 21.57 x 6.3 x 10"
> Net weight - 92.0lbs
> Mounting bolt pattern - 10 x 4.5"
